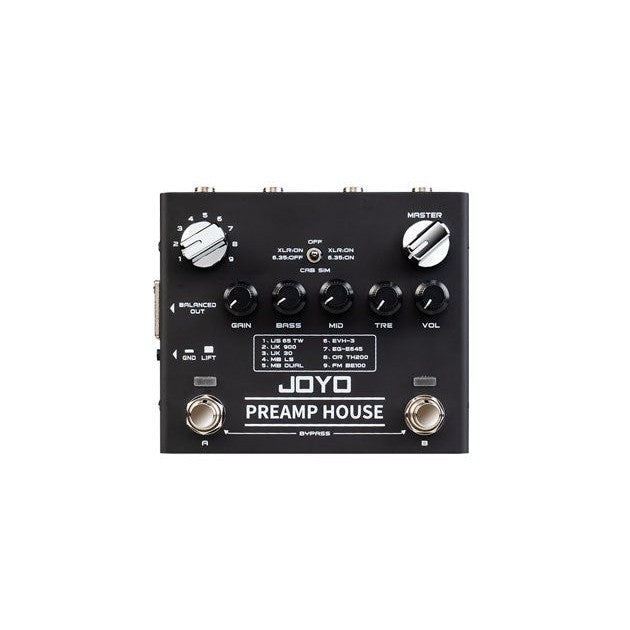

The JOYO Preamp House is an amazing guitar pedal that packs 9 classic guitar amp preamps into one compact unit! Just turn the dial to choose from a range of amp simulations, switching effortlessly from a vintage Fender-like clean tone to a dirty Mesa-style drive. With 9 different amps and 2 channels per preamp, you have a wide variety of tones at your fingertips. It comes with a built-in 4 x 12 cab simulation loaded with Impulse Response, and 3 controls to turn it off or switch between the 6.35 out and the balanced XLR output. The headphone out always uses the cab simulation. Each preamp has clean and distortion channels, and you can save your settings on both for all amps. Use the A & B footswitches to select between clean or distortion settings, and press them together for bypass mode. There's also a built-in FX LOOP interface for external FX pedals, allowing you to position your modulation, delay, reverb, and EQ just like with a classic head. This user-friendly pedal is the result of 10 years of our best-selling amp simulator guitar effect pedals. It brings those classic and vintage guitar amp tones you love directly to your pedalboard and into your ears, without the need for an expensive amp. You can use JOYO Amp Simulators as a DI (Direct Interface) directly into a mixing console, audio recording interface, or in front of a clean amp for a tonal boost. Features include XLR output, 9-position amp selector, gain control, cab sim toggle, treble adjustment, master guitar volume, lift switch, footswitches for clean and distortion, mono input/output, headphone output, USB for firmware updates, and groovy ambient lighting. Dimensions are 130mm * 110mm * 50 mm, and it weighs 450g. Input impedance is 1MΩ, output impedance is 600Ω, and XLR output impedance is 600Ω. Sample rate is 44.1kHz, sample resolution is 24-bit, rated current consumption is 320mA, delay time is about 500ms, and it runs on DC 9V (center minus). PLU: R15
Using the JOYO Preamp House is easy. First, plug your guitar into the mono input. To select an amp simulation, turn the 9-position amp selector dial. You can choose from different classic amp tones, like a vintage clean or a dirty drive. Use the gain control to adjust the intensity of the signal. The cab sim toggle lets you control the built-in cab simulation, and you can switch its output between the 6.35 out and the balanced XLR output. For the headphone output, the cab simulation is always on. Each preamp has a clean and a distortion channel. You can save your settings on both channels for all amps. To switch between the clean and distortion settings, use the A and B footswitches. Press them together to enter bypass mode. There's also a built-in FX LOOP interface for external FX pedals. You can connect your modulation, delay, reverb, and EQ pedals here to get the sound you want. When it comes to power, the pedal runs on DC 9V (center minus). Make sure to use the correct power supply to avoid any issues. For firmware updates, connect the pedal to your computer via the USB port. As for maintenance, keep the pedal clean and dry. Avoid exposing it to extreme temperatures or moisture. If you're not using it for a long time, store it in a safe place. That's all you need to know to start enjoying great guitar tones with the JOYO Preamp House!
